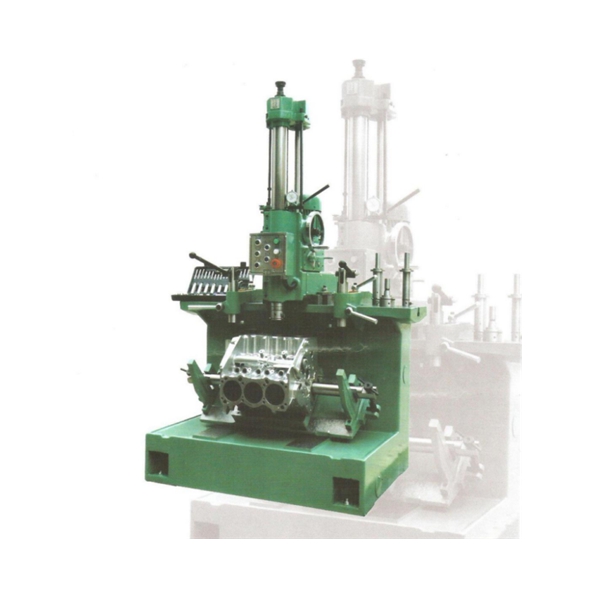

TB8016 Vertical air floating fine boring machine

NIO

Items

Unit

Datas

1

Model

TB8016

2

Boring diameter

mm

Φ39-Φ160

3

Max. boring depth

mm

320

4

Boring head travel

Longitudinal

mm

1000

5

Transversal

mm

45

6

Spindle feed

mm/s

0.09

7

Spindle speed

r/min

125,185,250, 370 ( 4 steps)

8

Spindle rapid reset

mm/s

430 , 640

9

Pneumatic pressure

Mpa

0.6

10

Motor power

Kw

0.85 / 1.1

11

V-block fixture patented system

degree

30°,45 °

12

Overall dimensions

mm

1250×1050×1970

13

Packing dimensions

mm

1500×1140×2070

14

N.W./G.W.

kg

1300/1500
