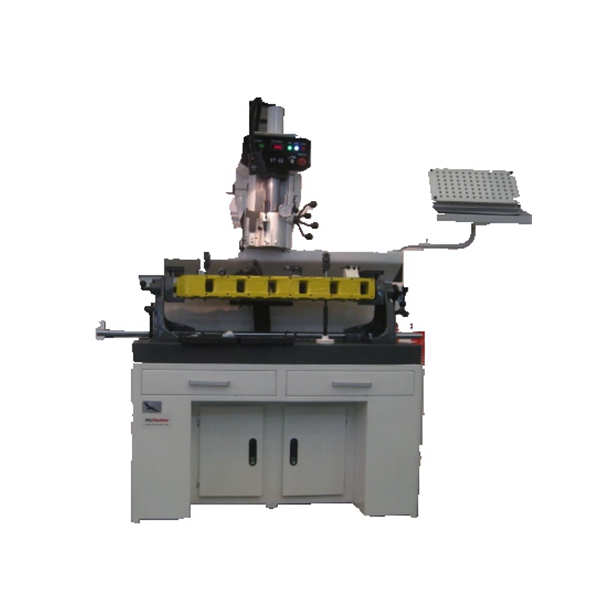

VSB-60 Valve Guide and Valve Seat Renewing Machine

NO

Description

Technical Parameters

1

Working Table Dimensions (L * W)

1245 * 410 mm

2

Fixture Body Dimensions (L * W * H)

1245 * 232 * 228 mm

3

Max. Length of Cylinder Head Clamped

1220 mm

4

Max. Width of Cylinder Head Clamped

400 mm

5

Max. Travel of Machine Spindle

175 mm

6

Swing Angle of Spindle

-12° ~ 12°

7

Rotating Angle of Cylinder Head Fixture

0 ~ 360°

8

Conical Hole on Spindle

30°

9

Spindle Speed (Infinitely Variable Speeds)

50 ~ 380 rpm

10

Main Motor (Converter Motor)

  Speed 3000 rpm（forward and reverse）

 0.75 kW fundamental frequency  50 or 60 Hz

11

Sharpener Motor

0.18 kW

12

Sharpener Motor Speed

2800 rpm

13

Vacuum Generator

0.6 ≤ p ≤ 0.8 Mpa

14

Working Pressure

0.6 ≤ p ≤ 0.8 Mpa

15

Machine Weight (Net)

700 kg

16

Machine Weight (Gross)

950 kg

17

Machine External Dimensions (L * W * H)

184 * 75 * 195 cm

18

Machine Packing Dimensions (L * W * H)

184 * 75 * 195 cm
