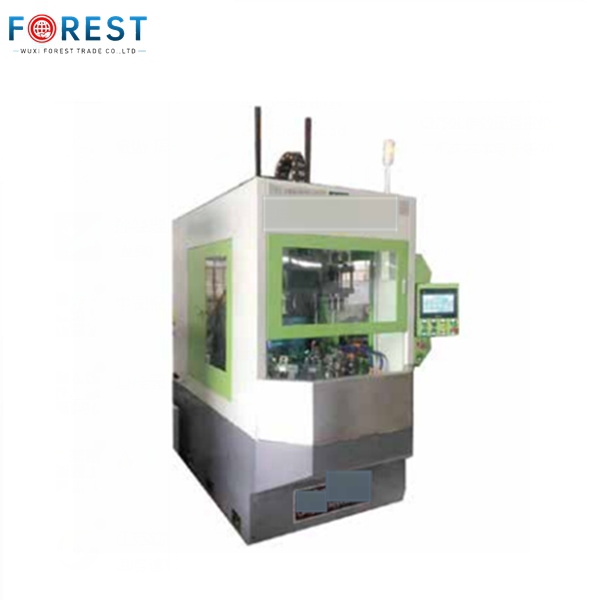

CNC High Precision Single pass honing machine

No.

Items

Parameters

1

Model

FJYJH 50-6-8A

2

Honing diameter range

φ2mm- φ50mm

3

Stroke depth

200mm

4

Stroke speed

25m/min adjustable

5

 Stroke control type

Servo motor

6

Quantitative /constant pressure

7

 Spindle feeding motor

0.75KW*6, Frequency inverter/ Servo

8

Spindle speed

80-1500r/min

9

Spindle number

6 PCS

10

Workpiece stations number

8 CPS , turning table

11

Machine dimenstion

2300×1400×3000 mm

12

Machine weight

4 T
