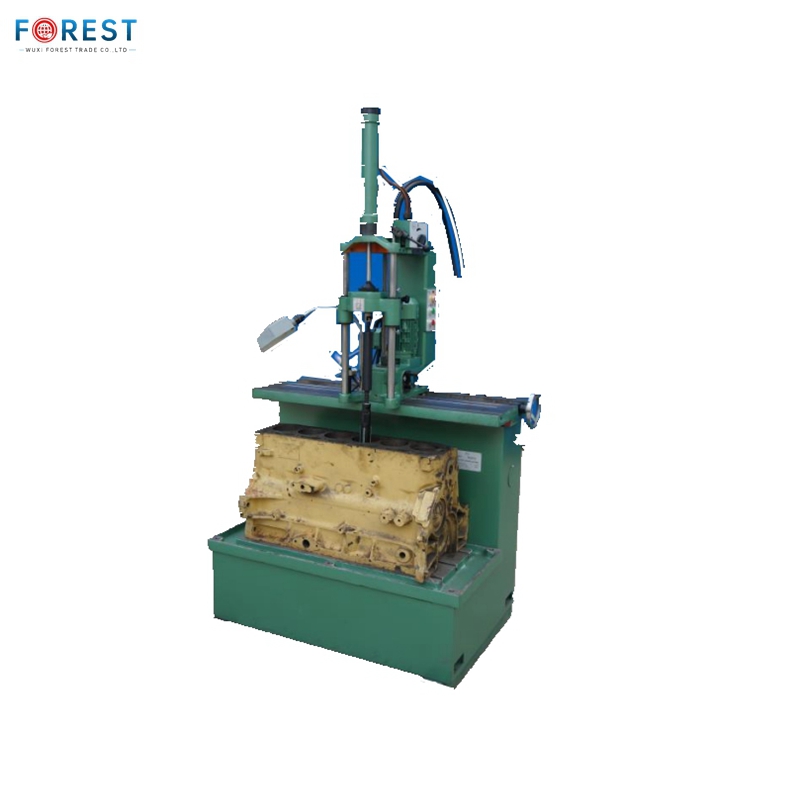

LIGHT CYLINDER HONER MACHINE

NO

Items

Parameters

1

Honing diameter range

 Φ40-140mm

2

Max Stroke length

320mm

3

Spindle speed

125/250rpm

4

Maxi Stroke length

340mm

5

stroke speed

0-14m/min

6

Cylindricity accuracy

0.0075mm

7

Circularity accuracy

0.0050mm

8

Surface finishing

Ra 0.2

9

Total capacity of electric motors

2.52KW

10

Honing head motor

0.90KW

11

Oil pump motor

1.50KW

12

Cooling pump motor

0.12KW

13

Power supply

AC 380V, 50ahz, 60hz

14

Machine dimension

1300*812*2075mm

15

Machine weight

650KG
