Maximum machinable diameter:70mm
Maximum machined hole depth:130mm
Spindle speed:100-600r/ min
Spindle travel:365mm
Features
● The spindle is driven by an independent servo motor, and each axis can be controlled independently. Torque monitoring is available;
●Base , Column The spindle box is a cast iron component, ensuring stability. Good sex life;
● Japanese SANDEX turntable, high efficiency ,reliable;
● TBI lead screws and THK guide rails offer high transmission accuracy;
● Compact and flexible, with an automated access point.
Technical Requirements
|
Technical Requirements |
HSA 06 |
HSA 08 |
HSA 10 |
|
Spindle speed (r/ min ) |
100-600 |
100-600 |
100-600 |
|
Spindle travel ( mm ) |
365 |
365 |
365 |
|
Maximum machinable diameter ( mm ) |
70 |
70 |
70 |
|
Maximum machined hole depth ( mm ) |
130 (height can be increased) |
130 (height can be increased) |
130 (height can be increased) |
|
Number of spindles |
5 |
7 |
9 |
|
Workbench number of workstations |
6 |
8 |
10 |
|
Equipment dimensions ( mm ) |
1600*2900*2600 |
1600*2900*2600 |
1600*2900*2600 |
|
Equipment weight (tons) |
3 |
3 |
3 |

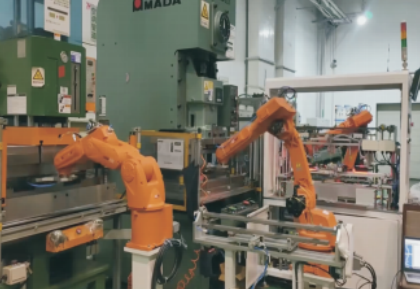

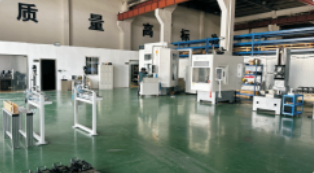

Our factory
